UL2547 Multi-Core Shielded Wire 多芯隔离线

UL2547 Multi-Core Shielded Wire 多芯隔离线

  • 所属分类:UL隔离线
  • 浏览次数:0
  • 发布时间:2022-08-06 11:02:11
  • 产品概述

UL2547 Multi-Core Shielded Wire 多芯隔离线

■说明:
●导体使用绞线,30 - 16AWG裸软铜或镀锡软铜线
●半硬PVC绝缘,芯线类似UL 1061
●2芯或3芯
●裸软铜或锡软铜线缠绕隔离
●PVC被覆
●额定温度:80℃; 额定电压:无规定
●可通过UL VW-1SC 垂直耐燃测试
●参考标准:UL 758,UL 1581

■应用:
●用于录音,录音工作室,音响系统,电子电路

■PRODUCT DESCRIPTION:
●Tinned or bare,stranded or solid copper conductor,30-16AWG .
●Color-coded PVC insulation similar to UL 1061.
●Two or three cores.
●Tinned or bare copper wire spiral shield.
●PVC jacket.
●Rated temperature:80℃.Rated voltage not specified.
●Passes UL VW - 1SC vertical flame test.
●Reference standard:UL subject 758,UL 1581.

■APPLICATIONS
●For use in recording studios,sound systems and electronic circuits.


UL2547 Multi-Core Shielded Wire 多芯隔离线

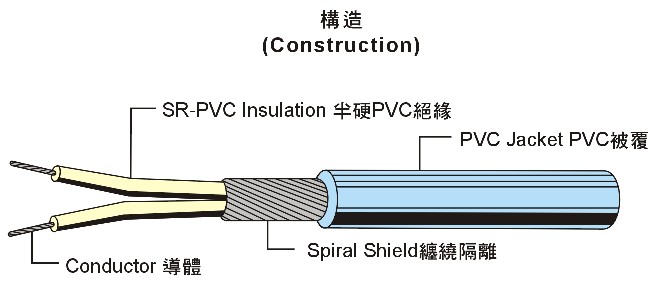

■ 产品结构 CABLE CONSTRUCTION:
Conductor
导体
InsuIation
Thickness
Spiral
Shield
Jacket
Thickness
Overall
Diameter
   No.
  Of core
线号 线数/线径 绝缘厚度 缠绕隔离 被覆厚度 完成外径
AWG No./mm mm No./m m mm mm
30 7/0.102 0.26 44/0.10 0.40 2.64    2-cores
    2芯
28 7/0.127 46/0.10 2.80
26 7/0.16 54/0.10 3.00
24 11/0.16 60/0.10 3.26
22 17/0.16 62/0.12 3.60
20 26/0.16 72/0.12 3.96
18 41/0.16 82/0.12 4.44
16 26/0.254 98/0.12 5.08
30 7/0.102 0.26 49/0.10 0.40 2.77    3-cores
    3芯
28 7/0.127 53/0.10 2.94
26 7/0.16 54/0.10 2.90
24 11/0.16 69/0.10 3.43
22 17/0.16 72/0.12 3.76
20 26/0.16 82/0.12 4.14
18 41 /0.16 96/0.12 4.66
16 26/0.254 114/0.12 5.35
