UL2835 网线

UL2835 网线

  • 所属分类:UL隔离线
  • 浏览次数:0
  • 发布时间:2022-08-06 11:04:40
  • 产品概述

UL2835 网线

■ 说明:
● 导体使用裸软铜或镀锡软铜绞线
●PVC或PE或PP绝缘
●裸软铜或镀锡软铜线地线
●可加上裸软铜或镀锡软铜线编织隔离
●PVC被覆,也可采用NC-PVC被覆
●额定温度:60℃;额定电压:30volts
●可通过UL VW-1 垂直耐燃测试
●参考标准:UL 758,UL 1581

■ 应用:
●低压电子电器设备内部用线  网络线,常用的网络工程的网络线材。

■ PRODUCT DESCRIPTION:
● Tinned or bare stranded copper conductor.
● Color-coded PVC or PE or PP insulation.
● Tinned or bare copper drain wire.
● Tinned or bare copper wire braid shield available.
● PVC jacket, Non-migration PVC jacket available.
● Rated temperature:60℃. Rated voltage:30 volts.
● Passes ULVW-1 vertical flame test.
● Reference standard:UL subject 758,UL1581.

■ APPLICATIONS
●Internal wiring in low voltage circuits of electronic equipment.


UL2835 网线

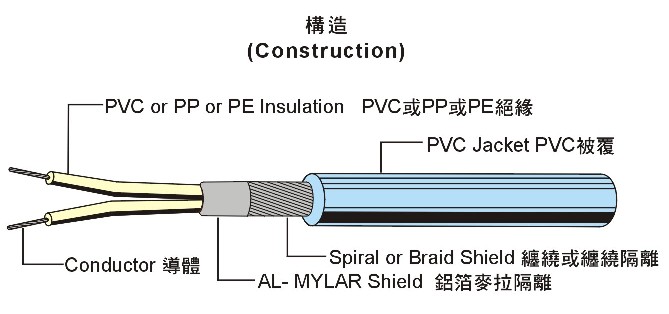

■产品结构 CABLE CONSTRUCTION:
Conductor
导体
Insulation
Diameter
N0.
Of core
Drain
Wire
Shield
Material
Sprial 缠绕
No./mm
Braid 编织
No./No./mm
Jacket
Thickness
Overall
Diameter
线号线数/线径绝缘厚度芯数地线隔离材质被覆厚度完成外径
AWGN o./m mmmNoNo./mm- - -mmmm
287/0.1270.902- - -Paper- - -0. 532.70
2217/0.161.183- - -Paper- - -0.594.00
287/0.1270.824- - -AL57/0.101.004.30
2217/0.161.20417/0.16AL- - -0.454.00
2819/0.080.805- - -Paper16/6/0.120.884.80
2217/0.161.185- - -Paper- - -0.524.50
287/0.1270.826- - -AL79/0.100.684.30
307/0.1020.7577/0.127AL16/7/0.100.554.00
287/0.1270.9077/0.16- - -75/0.120.905.00
2819/0.080.868- - -Paper24/5/0.100.744.80
287/0.1270.829- - -Paper81 /0.120.744.90
287/0.1270.90107/0. 16AL- - -0.575.00
3011/0.080.7011- - -Paper76/0.120 . 904.90
