UL2095 Multi-Core Shielded Wire 多芯隔离线

UL2095 Multi-Core Shielded Wire 多芯隔离线

  • 所属分类:UL控制线
  • 浏览次数:0
  • 发布时间:2022-08-06 13:45:12
  • 产品概述

UL2095 Multi-Core Shielded Wire 多芯隔离线

■说明
●导体使用32AWG以上绞线,裸软铜或镀锡软铜线
●PVC绝缘
●可加上裸软铜或镀锡软铜线继续隔离
●PVC被覆
●额定温度:80℃;额定电压:300volts
●可通过UL VW-1 垂直耐燃测试
●参考标准:UL 758, UL 1581

■应用:
●一般电子,电器设备内部配线

■PRODUCT DESCRIPTION:
●Tinned or bare,stranded or solid copper conductor,32AWG minimum.
●Color-coded PVC insulation.
●Tinned or bare copper wire spiral shield available.
●PVC jacket.
●Rated temperature:80℃. Rated voltage:300 volts.
●Passes UL VW - 1SC vertical flame test.
●Reference standard:UL subject 758,UL 1581.

■ APPLICATIONS:
●For general purpose internal wiring of electronicand electrical equipment.


UL2095 Multi-Core Shielded Wire 多芯隔离线

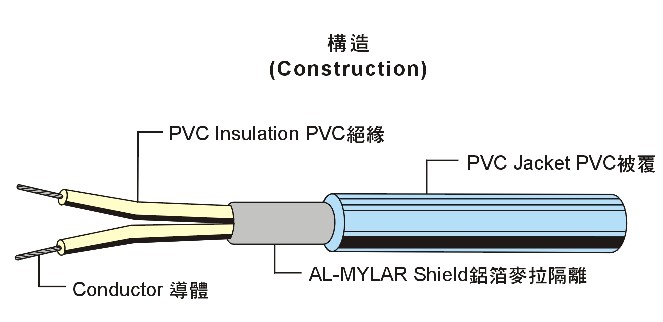

■ 产品结构 CABLE CONSTRUCTION:
Conductor
导体
InsuIation
Thickness
Spiral
MateriaI
Jacket
Thickness
Overall
D iameter
No.
Of core
线号线数/线径绝缘厚度隔离材质被覆厚度完成外径
AWGNo./mmmm- - -mmmm
2610/0.1270.27AL-Mylar0.664.001 芯
2419/0.1270.26AL-Mylar0.664.002芯
2610/0.1270.27AL-Mylar0.574.001 芯
2419/0.1270.26AL-Mylar0.574.002芯
